Rod Dataset

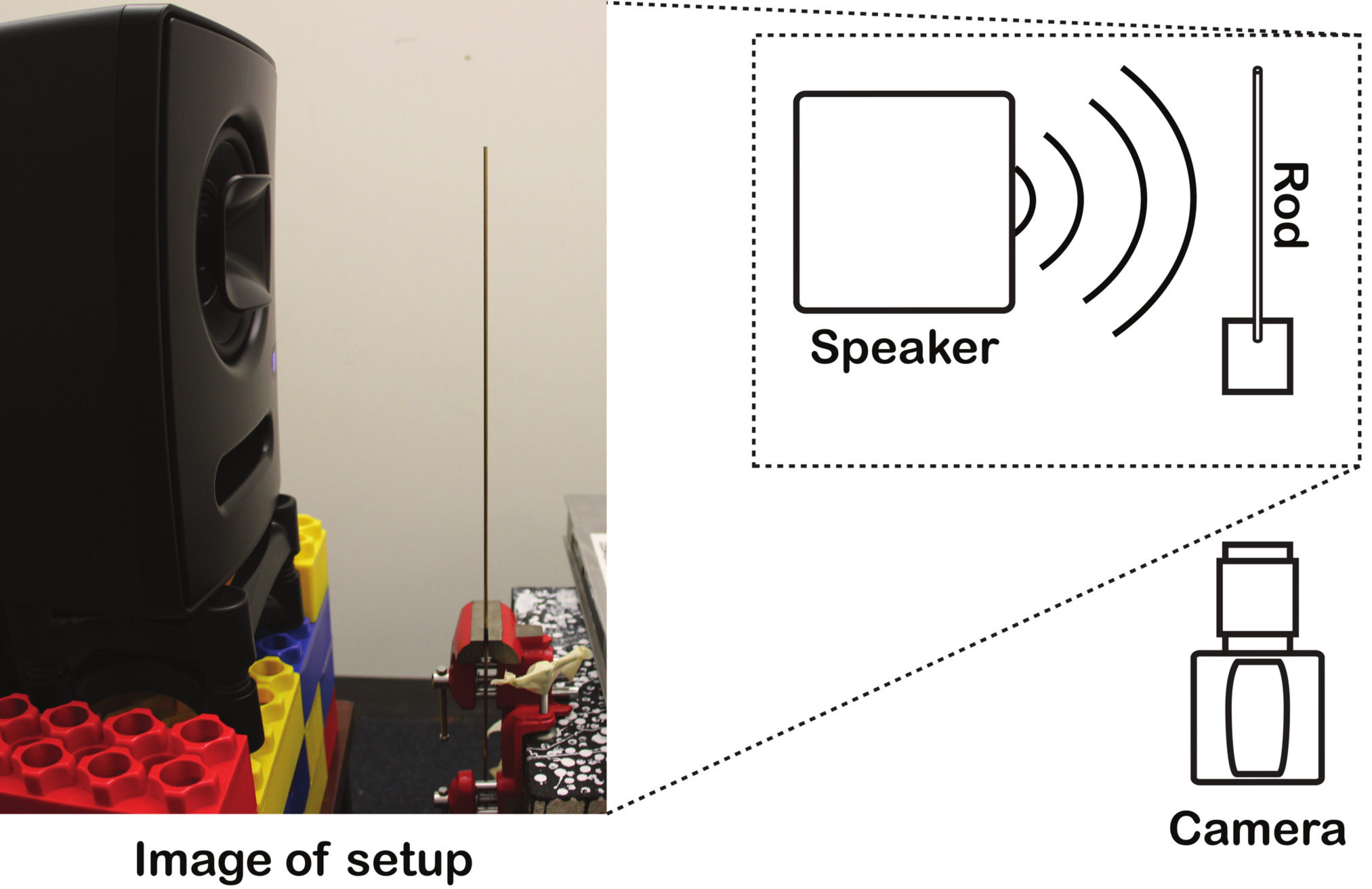

Rods were clamped to a block of concrete next to a loudspeaker. Sound, played through the loudspeaker, was used to excite each rod. Each rod was filmed twice: once clamped to a length of 15 inches and once clamped to a length of 22 inches. We provide:
  • Material Property Measurements of Rods made from 4 Different Metals - Steel, Aluminum, Copper, and Brass

  • High Speed (2500 fps) Video of Clamped Rods
rod setup
Aluminum Steel Copper Brass Wood Fiberglass
22-inch cine video cine video cine video cine video cine video cine video
15-inch cine video cine video cine video cine video cine video cine video

Download the Rod Material Properties Here



Fabric Dataset

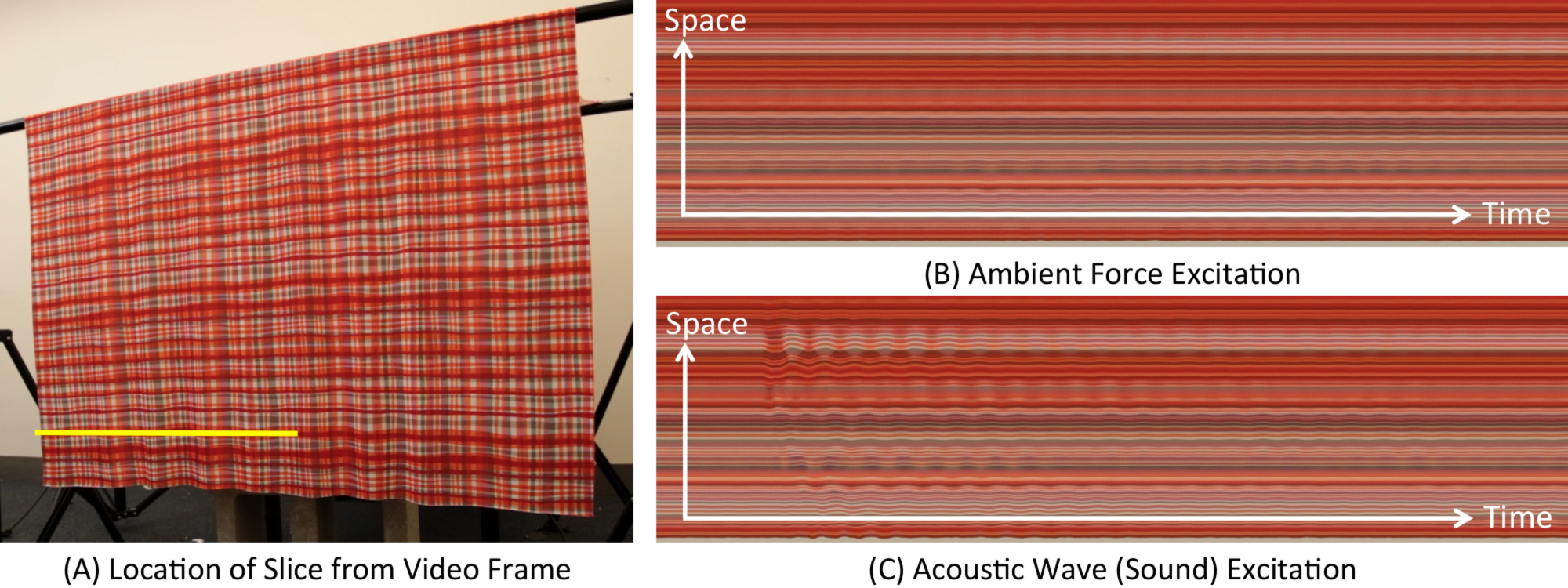

Fabric was loosely draped over a bar. The fabric was filmed moving due to 2 types of excitation: ambient forces, such as air currents in the room or small vibrations in the building, and sound played through a loudspeaker. Fabric was filmed from a 2 different viewpoints using 2 different cameras. Specifically, we provide:
  • Material Property Measurements for Each Fabric from Previous Work

  • Regular Framerate (30/60 fps) video of the Fabric moving using a Point Gray (Left - L) and SLR Camera (Right - R)

rod setup

Fabric 1 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 2 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 3 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 4 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 5 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 6 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 7 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 8 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 9 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 10 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 11 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 12 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 13 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 14 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 15 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 16 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 17 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 18 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 19 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 20 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 21 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 22 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 23 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 24 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 25 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 26 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 27 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 28 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 29 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L
Fabric 30 Sound 1 - R Sound 2 - R Silence - R Sound 1 - L Sound 2 - L Silence - L

Download the Fabric Material Properties Here
If you use these fabric properties in your work please cite (Bouman et. al, ICCV 2013)


Citation

If you use any of the data from this page, please cite our CVPR paper:

@InProceedings{Davis_2015_CVPR,
author = {Davis, Abe and Bouman, Katherine L. and Chen, Justin G. and Rubinstein, Michael and Durand, Fredo and Freeman, William T.},
title = {Visual Vibrometry: Estimating Material Properties From Small Motion in Video},
journal = {The IEEE Conference on Computer Vision and Pattern Recognition (CVPR)},
month = {June},
year = {2015}
}
